LED Display Lineup

ChromaVision 39 3.9mm Pitch

We deliver clear, sharp images through the narrow pitch of 3.9 mm even when your customers go very close to the screen.
With the maximal brightness of 1,200 nits, it is sufficiently bright to transmit information with a powerful aura even when installed near a window.
We propose video devices, as well as system configurations for video and information transmission, e.g. distribution systems.

See Case Studies

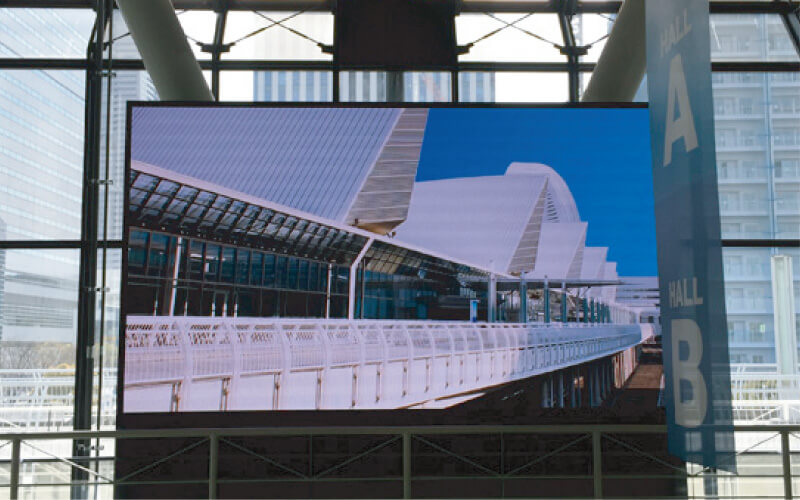

Pacifico Yokohama
Size (mm)	4500 (W) mm x 2500 (H) mm (202 inches)	Pixel Pitch	3.9mm
Maximum Brightness	1200nit	Module Size (mm)	250x250
No. of Module Pixel (dot)	64x64	Operation Temperature (w/o Condensation)	0 ～ + 40 ℃

ChromaVision 160 16mm Pitch

Our LED Display have a maximum brightness of 6,000-nit, which is comparable to external light sources. They function as large LED signages to deliver your message in a powerful and efficient way.
We are also professional for high installation location.

See case studies

Shibuya Station Vision
Size (mm)	W21,600mm x H16,320mm (1,066 inches)	Pixel Pitch	16.0mm
Maximum Brightness	6000nit	Module Size (mm)	240x240
No. of Module Pixel (dot)	15x15	Operation Temperature (w/o Condensation)	-10 to + 50 ° C

You can see the table on a slide.

* We constantly improve and increase the scope of our products so we can also provide models not on our list. Do not hesitate to contact us.

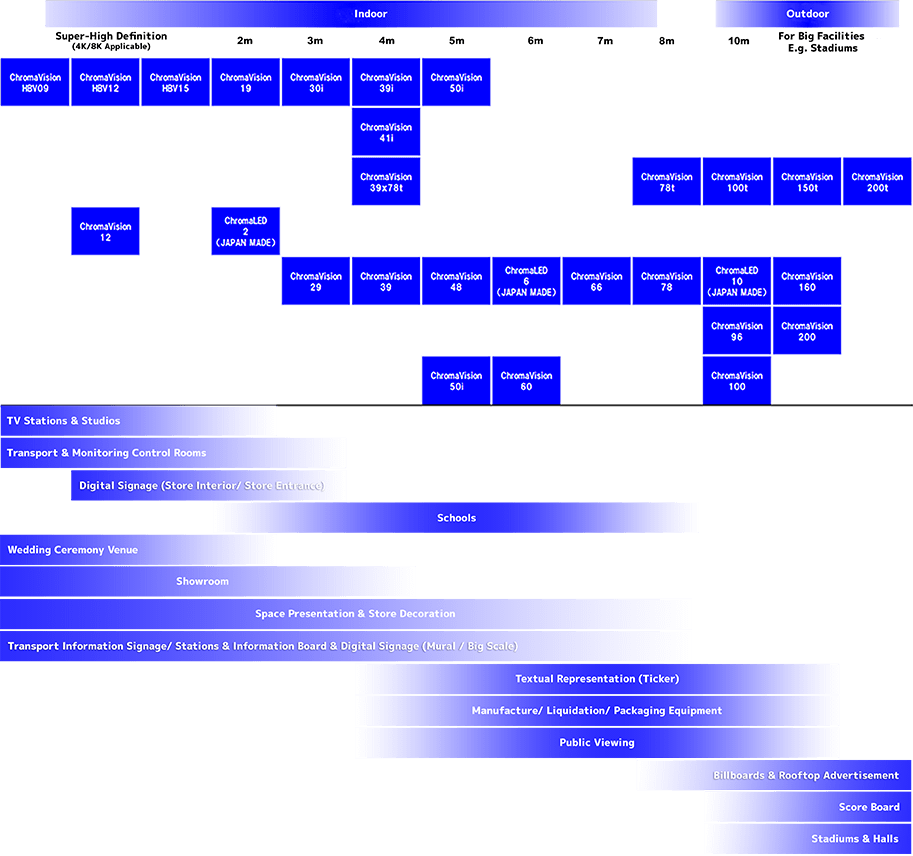

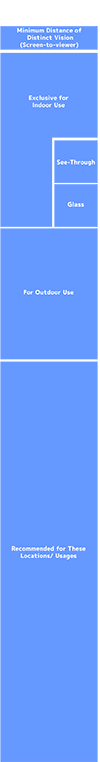

LED Display Specification Comparison

Indoor-Exclusive

You can see the table on a slide.

		ChromaVision HBV09	ChromaVision HBV12	ChromaVision HBV15	ChromaVision HBV19	ChromaLED 2	ChromaVision 30i	ChromaVision 39i	ChromaVision 40i	ChromaVision 50i
Pitch		0.95mm	1.26mm	1.5mm	1.9mm	2.4mm	3.0mm	3.9mm	4.0mm	5.0mm
Minimum Distance of Distinct Vision		1m (Short Distance)		2m		2-3m		4m		5m
Size (mm)		608x342	608x342	480x270	608x342	153.6x153.6	640x480	500x500	864x288	864x288
Resolution (pixel)		640x360	480x270	320x180	320x180	64x64	213x160	128x128	216x72	168x56
Brightness (nits)		1,200	1,200	1,500	1,500	800	800	800	800
Applicable Controllers		Please contact us				HLC-2020 / HLC-2K	Please contact us
Operation Temperature (w/o condensation)	0 ~ + 40 ℃

Outdoor-Exclusive

You can see the table on a slide.

ChromaVision
29

ChromaVision
39

ChromaVision
48

ChromaVision
50

ChromaLED
6

ChromaVision
60

ChromaVision
66

ChromaLED
10

ChromaVision
78

ChromaVision
96

ChromaVision
100

ChromaVision
160

ChromaVision
200

Pitch

2.97mm

3.91mm

4.8mm

5.0mm

6.0mm

6.67mm

10.0mm

7.8mm

9.6mm

10.0mm

16.67mm

20.0mm

Minimum Distance of Distinct Vision

3m

4m

5m

6m

10m

16m

20m

Size
(mm)

500x1000

500x500

750x750

960x960

192x192

960x960

800x900

320x320

750x750

800x900

960x960

Resolution
(pixel)

168x336

128x128

156x156

192x192

32x32

120x135

119x134

32x32

96x96

78x78

80x90

48x54

48x48

Brightness (nits)

4,000

5,000

5,500

5,000

Applicable
Controllers

Please contact us

HLC-2020 / HLC-2K

Please contact us

HLC-2020 / HLC-2K

Please contact us

Operation Temperature
(w/o condensation)

-10 ~ + 50 ℃

0 ~ + 40 ℃

-10 ~ + 50 ℃

0 ~ + 40 ℃

-10 ~ + 50 ℃

For more details

How to Choose Big LED Display

LED Display contribute to reduce installation costs by adjusting the right viewing distance and pixel pitch.
Undoubtedly, you are able to select a display with fine depiction by choosing an LED with a fine pixel pitch while in the installation on rooftop of a building, for example, the distance between viewers and the display (visual distance) is long that it becomes over-engineered that detailed depiction collapses.
Also, the required brightness actually varies depending on the installation conditions- whether it is indoor, outdoor, or outdoors plus being exposed to direct external light or in the shade.
It is crucial to select “high-brightness LED display” if it is directly exposed to external light, and “outdoor” when it is exposed to water droplets even it is installed indoor.

Point1

Checking the minimum distance of distinct vision

Point2

Checking the appropriate pixel pitch

Minimum distance of distinct vision (mm) ÷ 1000
= Appropriate pixel pitch (mm)
[Example] Minimum distance of distinct vision 10m
= Appropriate pixel pitch 10mm

Point3

Conditions of the installation spot

External light sources, water-resistant, etc.

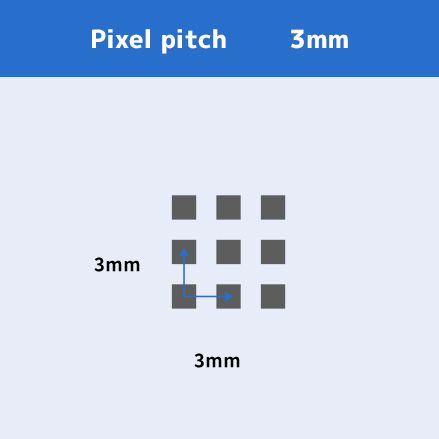

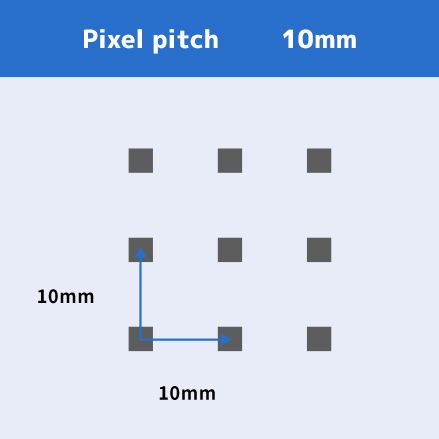

Pixel pitch

The distance between LEDs is called “pixel pitch”. The smaller the pixel pitch, the higher the definition of the screen.
For the same display size, a smaller pixel pitch means a higher density of LEDs per area, and the creation of high-resolution image is thus feasible.
For the same pixel pitch, the larger the display size, the higher the resolution- yet, the same viewing distance doesn’t change the appearance (roughness and fineness) of the image indeed.

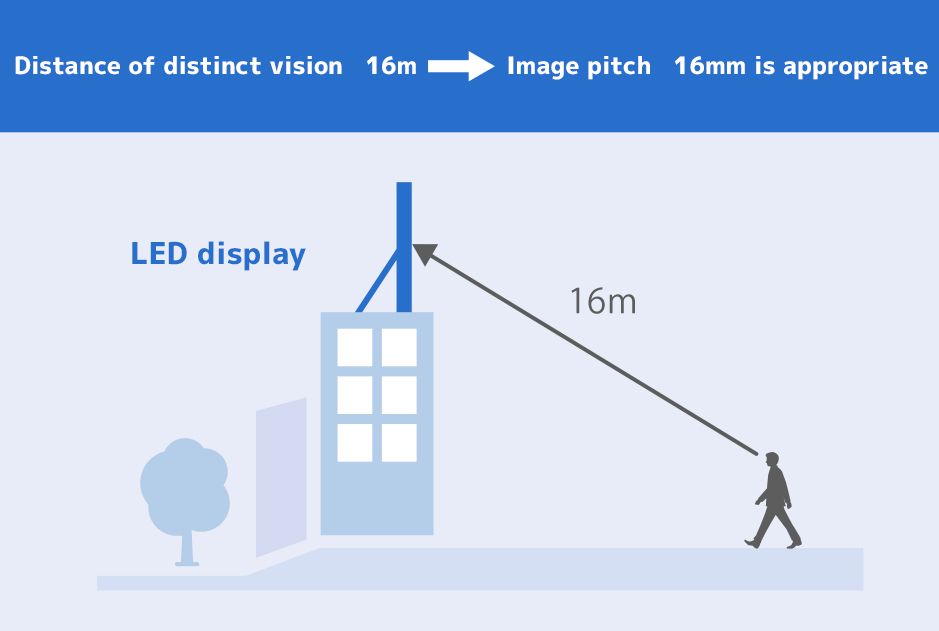

Minimum Distance of Distinct Vision

The distance between the LED display and the viewer is called the "visual distance". In the case when the viewing distance is short, if the distance between the LEDs (pixel pitch) is coarse, images become be rough and difficult to see, it is hence necessary to select an appropriate pixel pitch according to the viewing distance.
The relationship between the minimum distance of distinct vision and the pixel pitch is determined by the shortest viewing distance (mm) ÷ 1000 = appropriate pixel pitch (mm).

[Example] Minimum distance of distinct vision 10m = Appropriate pixel pitch 10mm

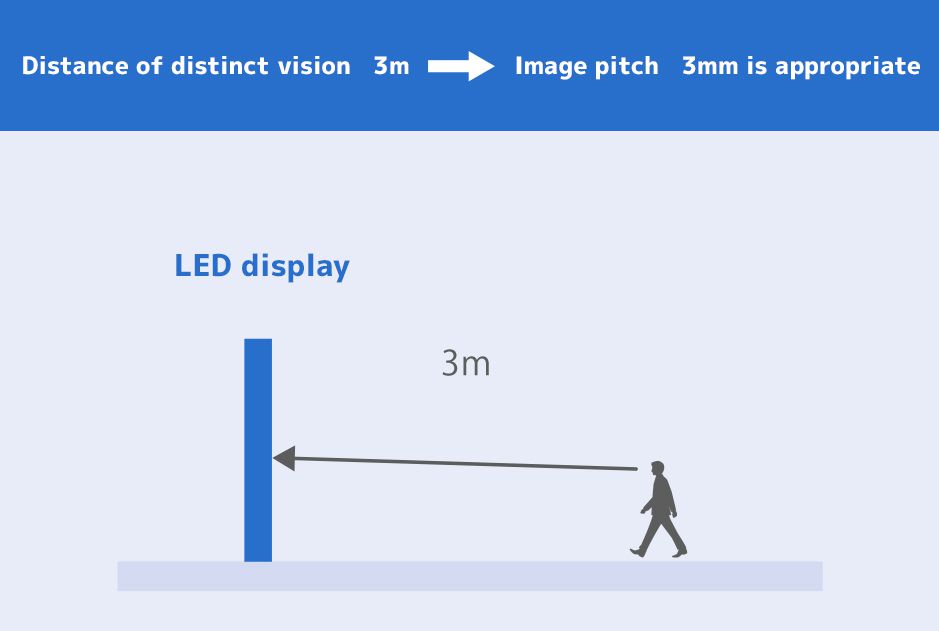

Minimum distance of distinct vision 3m = proper pixel pitch 3mm

We recommend ultra-high-definition LED for displays installed in showrooms for brand-building rather than pixel pitches that might be affected by the viewing distance as the vision could be much more impressive.

LED Controller

Different from many other general displays, the size and resolution of LED Display is not affected by the installation location at all so an exclusive controller with the function of enlarging/ cropping images according to the size and aspect ratio of the screen is hence required. The quality of the projected image depends not only on the performance of the LED display but also on the descriptive power of the controller.
Hibino’s LED controller maximizes the attractions of video source with Hibino’s original system so as to utilize performance of the LED display and provides excellent, satisfying images for your customers.

A high-end model full of advanced functions to fulfill all creators’ wishes
HLC-2020

HDR compatible (HLG & PQ)
Equipped with 12 outputs to cope with complicated LED display sizes and surface configurations (one single output system to cope with 1,024 horizontal x 768 vertical pixels)
Able to connect multiple units and support large resolutions
Easy operation- performing most of the operations on the front panel
Equipped with HDMI 2.0 and 12G-SDI inputs
Made in Japan

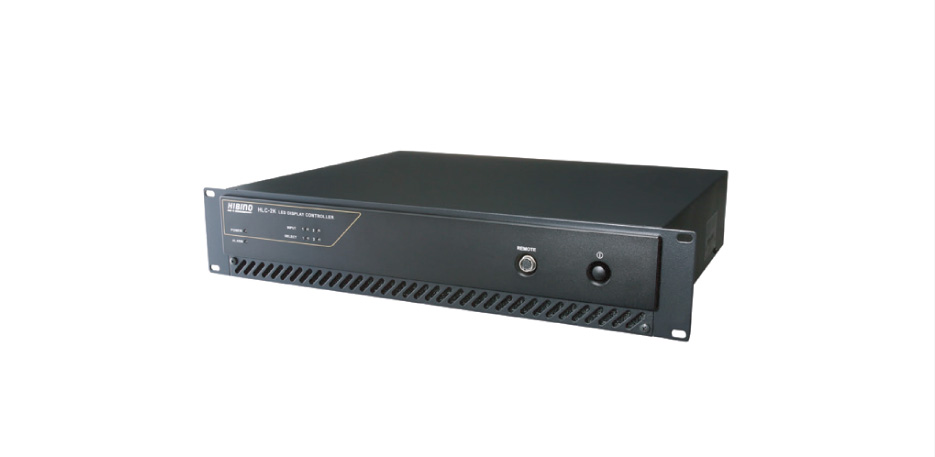

Providing the best price while providing the very best expression power Basic model HLC-2K

Equipped with edge control function to adjust the uneven brightness t at the edges between LED panels
Provides a uniform screen with constant brightness, especially in high-definition LED Display
Provides a uniform screen with little uneven brightness, especially in high-definition LED Display
Supports high-definition video sources such as 3G-SDI input HD signals
Equipped with high-quality circuit, high-performance IP conversion, and 3D noise reduction circuit
A light & silent design
Made in Japan
